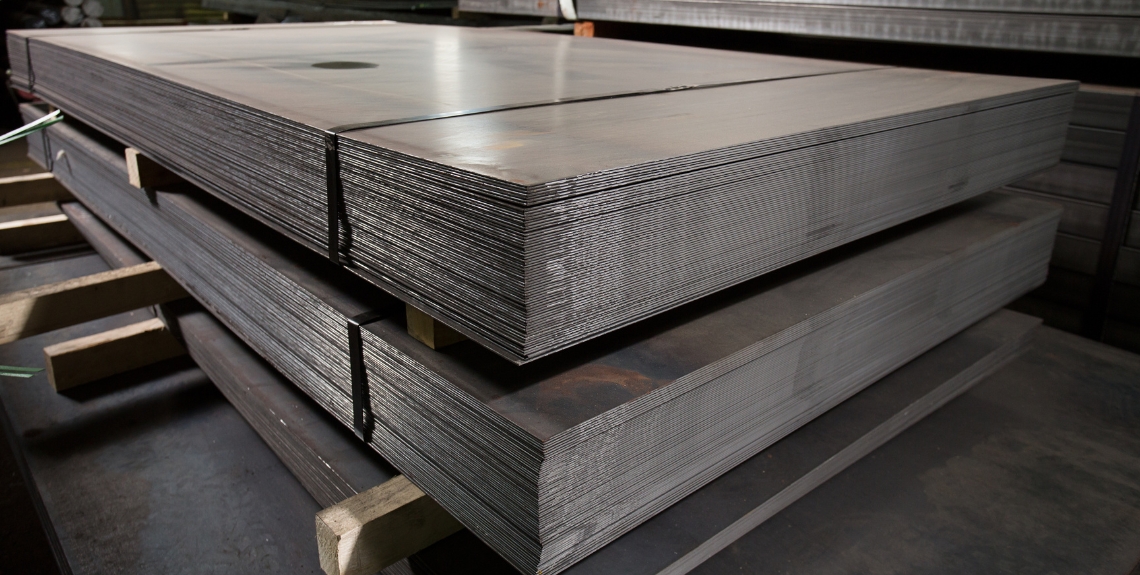

Hot Rolled Heavy Plates
ROMNEF supplies hot rolled heavy steel plates obtained by rolling on plate mills.
Steel grades: Construction steels according to EN 10025-2, 3, 4, 5. Common grades in stock: S235JR+N; S275JR+N; S355J2+N. Pressure-resistant steels according to EN 10028-2, 3, 5, 6. Common stock grade: P295GH.
Dimensional range: Thickness: 6 – 150 mm. Widths: 1500, 2000, 2250, 2450 mm, up to 4000 mm on special order. Lengths: 4000 – 12000 mm.
Technical data: Delivery form: loose sheets. Dimensional and shape tolerances: EN 10029/SR EN 10029. Surface condition: EN 10163-1/SR EN 10163-1. Ultrasonic testing: EN 10160, on request. Inspection certificate 3.1 according to EN 10204/SR EN 10204 with CE marking and DoP for steels compliant with EN 10025/SR EN 10025, issued by the manufacturer.
Hot Rolled Strip and Medium Thickness Sheets
ROMNEF offers hot rolled steel strip and medium thickness sheets suitable for various industrial applications.
Steel grades: Cold forming steels according to EN 10111. Common stock: DD11. Construction steels according to EN 10025-2, 3. Common stock: S235JR, S235J2+M, S355J2, S355J2+M. Pressure-resistant steels according to EN 10028-2, 3, 5, 6. Common stock: P295GH.
Dimensional range: Thickness x Width: (3 – 12) x 1500 mm, (2.5 – 5) x 1000/1250/1500 mm, (1.5 – 2) x 1000/1250 mm. Sheet lengths: up to 12100 mm depending on sheet weight. Standard and custom-cut lengths available at ROMNEF. Common formats: 1000x2000 mm; 1250x2500 mm; 1500x3000 mm; 1500x6000 mm. Coil inner diameter: 850 mm. Coil weight: 13–23 tons.
Technical data: Delivery form: coils and sheet bundles. Dimensional and shape tolerances: EN 10051. Surface condition: EN 10163-1. Inspection report type 2.2 / inspection certificate type 3.1 according to EN 10204 with CE marking and DoP for steels according to EN 10025, issued by the manufacturer.
Cold Rolled Strip and Sheet
ROMNEF supplies cold rolled strip and sheet made from low carbon steels suitable for deep drawing or cold bending applications.
Steel grades: Low carbon steels for deep drawing and cold bending according to EN 10130. Common stock: DC01.
Dimensional range: Thickness: 0.4 – 3.0 mm. Standard sheet widths: 1000, 1250, 1500 mm. Sheet lengths: 350 – 6000 mm, cut to size upon request. Common formats: 1000x2000 mm; 1250x2500 mm; 1500×3000 mm. Slit strip widths: 24 – 1500 mm. Coil inner diameter: 500 mm. Max coil weight: 10 tons. Max bundle weight for sheet packages: 4 tons.
Technical data: Delivery form: coils or bundled sheets. Surface condition: oiled. Surface quality: Am, according to EN 10130. Dimensional and shape tolerances: EN 10131. Inspection report type 2.2 / inspection certificate type 3.1 (on request), according to EN 10204.
Galvanized Strip and Sheet
ROMNEF supplies galvanized steel strip and sheet, suitable for cold forming and structural applications, with various zinc coating weights.
Steel grades: Cold forming steels according to EN 10346. Common stock: DX51D+Z100, DX51D+Z140, DX51D+Z275. Structural grades for construction (S220GD+Z to S320GD+Z) are available on request.
Dimensional range: Thickness: 0.25 – 3.0 mm. Standard sheet widths: 1000, 1250, 1500 mm. Sheet lengths: 350 – 6000 mm, with cutting available on request. Common formats: 1000x2000 mm, 1250x2500 mm, 1500x3000 mm (only for thicknesses 0.7 – 1.0 mm). Slit strip widths: 24 – 1500 mm. Coil inner diameter: 500 mm. Max coil weight: 6 tons. Max sheet package weight: 4 tons.
Technical data: Delivery form: coil or bundled sheets. Zinc coating symbols: +Z100 (100 g/m²), +Z140 (140 g/m²), +Z275 (275 g/m²). Surface finish: M (minimized spangle). Surface quality: A. Surface treatment: C (chemically passivated). Dimensional and shape tolerances: according to EN 10143. Inspection report type 2.2 / inspection certificate type 3.1 (on request), according to EN 10204.
Pre-painted Strip and Sheet
ROMNEF supplies pre-painted galvanized steel strip and sheet, coated with organic layers in accordance with EN 10169, ideal for aesthetic and protective applications.
Steel grades: Hot-dip galvanized steel with organic coating, according to EN 10169. Zinc coating weight: 100 – 275 g/m². Organic layer thickness: 25 µm.
Dimensional range: Thickness: 0.30 – 0.85 mm. Standard widths: 1000 mm, 1250 mm. Sheet lengths: 1000 – 6000 mm. Coil inner diameter: 508 mm. Max coil weight: 6 tons.
Technical data: Common RAL colours: 3011, 3005, 8017, 5010, 6005, 9002, 9006. Dimensional and shape tolerances: according to EN 10143. Inspection report type 2.2 / inspection certificate type 3.1 (on request), according to EN 10204.
Hot Rolled Chequered Plate
ROMNEF supplies hot rolled chequered steel plate, widely used for non-slip surfaces and structural applications.
Steel grade: Structural steel according to EN 10025: S235JR+AR.
Dimensional range: Thickness: 3.0 – 12 mm. Widths: 1000 mm, 1250 mm, 1500 mm. Lengths: 2500 mm, 3000 mm, 6000 mm or customized on request.
Technical data: Chequer type: Type II (tear drop), in accordance with STAS 3480. Dimensional and shape tolerances: STAS 3480. Inspection report type 2.2, according to EN 10204, issued by the manufacturer.
Corrugated Sheet
ROMNEF supplies trapezoidal corrugated sheets in the following types: cold rolled, galvanized, and pre-painted.
Available profiles: Cold rolled corrugated sheet: H12, H35. Galvanized corrugated sheet: H12, H35, H60. Pre-painted corrugated sheet: H12, H35.
Steel grades: DC01 according to EN 10130 for cold rolled. DX51D+Z100 to Z140 according to EN 10346 for galvanized and pre-painted versions.
Dimensional range: Thickness: 0.3 – 1.5 mm. Widths: 1000 mm, 1250 mm. Lengths: up to 12,000 mm.
Technical data: Thickness tolerances according to EN 10131. Zinc coating type: N (minimized spangle). Surface quality: A. Chemical passivation treatment: C. Standard RAL colors for pre-painted sheets include: 3011, 3005, 8017, 5010, 6005, 9002, 9006. Other colors available on request.
Flat Steel Strip for Earthing
Hot-dip galvanized steel strip for earthing is available in a wide range of sizes and is supplied in coils weighing approximately 50 kg, strapped on wooden pallets (~1 ton/pallet).
Dimensions and approximate values: Width × Thickness (mm): 40×4, 30×3.5, 30×3, 50×5, 40×5, 50×4, 30×4, 25×4, 40×3, 25×3, 20×3, 30×2, 20×2. Corresponding weights range from 0.32 kg/m to 2.00 kg/m, with coil lengths between 25 m and 156 m.
Zinc coating: Z500 (~70 microns) and Z300 (~42 microns).
Steel grade: S235JR according to SR EN 10025-2/2004 and SR EN 10111/2008.
Dimensional tolerances: In accordance with SR EN 10051/2011 and SR EN 10111/2008.
Features: Rounded edges for safe handling and uniform shape.
Hot-dip Galvanized Steel Conductor
The hot-dip galvanized steel conductor is made of low carbon steel wire, suitable for grounding and other technical applications where corrosion resistance and mechanical flexibility are required.
Steel grade: SAE1006, in accordance with ASTM A510M standard.
Dimensions: Available wire diameters are 8 mm and 10 mm, corresponding to coil lengths of approximately 120 m and 80 m respectively. Unit mass is approximately 0.42 kg/m for 8 mm and 0.63 kg/m for 10 mm.
Delivery form: Supplied in coils weighing 50 ±1 kg.
Dimensional tolerances: In compliance with EN 10017.
Zinc coating: In accordance with EN 10244-2, ensuring long-term protection against corrosion in outdoor and underground installations.
